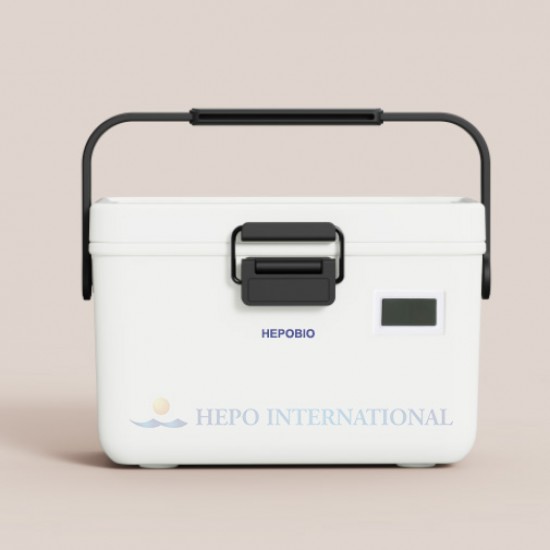

HP-HCL5 Passive Vaccine Cooler Box is designed for 35Days vaccine cool storage in Hot,remote,electricity lack areas.No need power source,it can keeping cooling at 0 to 10degree for 35days around at 43 degree ambient temperature.Suppose each baby need 250CC vaccine inoculation,HP-HCL5 can supply vaccine for 6000 children usage.That's why the box was designed and produced.
Ice blocks and vaccines are loaded into the HP-HCL5 using the access opening on the top of the device. The ice blocks are stacked against the inner wall, and the vaccine carrier cup-stacks are then loaded into the center. Health workers can easily retrieve and replace the vaccine vial stacks several times per day as the HP-HCL5 continues to stay cold and protect the vaccines.
The HP-HCL5 combines several technologies to maintain stable cold internal temperatures for vaccine protecton. Its core vacuum-walled flask is integrated with overall design and materials that mitigate unwanted heat exchange. In rigorous testing, the device has been proven to keep vaccines within 0 to 10degree,range for over 35 days-even in hot climate conditions.
Ice blocks and vaccines are loaded into the HP-HCL5 using the access opening on the top of the device. The ice blocks are stacked against the inner wall,and the vaccine carrier cup-stacks are then loaded into the center. Health workers can easily retrieve and replace the vaccine vial stacks several times per day as the HP-HCL5 continues to stay cold and protect the vaccines.
For additional verification that the vaccines remain protected,the temperature sensors and on-board electronics and will provide an alert if the interior area goes below the safe temperature range.
Main Parameters:
Model | HP-HCL5 |
Vaccine Storage Volume | 7.9L |
Cold Life at +43degree | 35Days |
Warm Life at -20degree | 6.1Days (test 8) |
Minimum Rated Ambient | +15Degree |
External Materials | HDPE |
Internal Lining Material | Aluminum Alloy |
Insulation Materials | Dewar |
Insulation Thickness | 40 |
Lid Type And Fixing | Removable Lid,lockable |
Type of Coolant Pack | Water packs |
Model Coolant Pack | Unique for devices |
Coolant Packs Supplied | Yes |
Weight Empty | 22kgs |
Weight Fully Loaded | 39.5kgs |
Vaccine Storage Dimensions | 28.3 x 9.8 x 28.5cm |
Internal Size | Diam 31.1 x 33.2cm |
External Size | Diam 52.8 x 74.7cm |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
