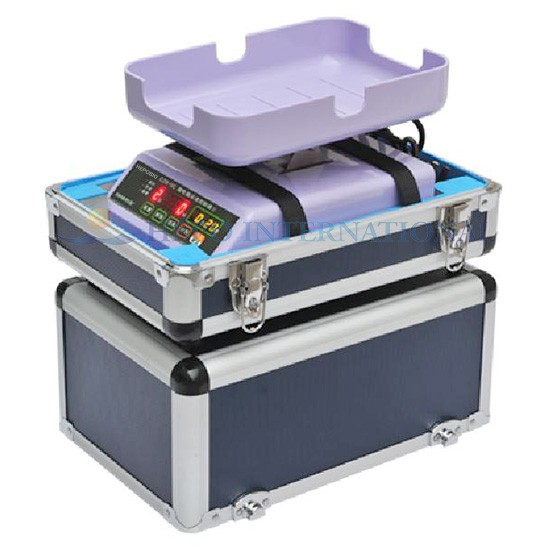

HEPOBIO Brand HP-BCM series microcomputer blood collection controller was developed by our factory. The series of product is controlled by microcomputer in the controller, with functions of bearing, deducting blood weight, blood collection control, pallet swing, blood collection pipeline blockage and alarm, and provides convenience for plastic bag blood collection.

The latest HP-BCM series product also has functions of instant sway pause, sway stop when approaching controlled quantity, and automatic sway recovery when the next bag begins to collect blood, which reduces the influence of swing on blood collection amount, and improves the accuracy of blood collection amount.

Reliable Performance, Simple Operation, Accurate Blood Collection, Convenient Correction are the principle for designing.

Main Advantages:
New-type sensor, with high precision
Automatic net-volume measurement, with alarms going off after fluid collection is completed.
Volume is calculated in the unit of milliliter, change of unit not necessary.
With four often used gears (HP-BCM100 type has five self-defined gears).
Well-designed, compact, user-friendly.
Accurate digital scale
Measurement either by net or gross volume
Pausing agitation when the collected volume is 10ml below than the preset value in order to give a more accurate result
Automatic agitating again when a new procedure begins
Timer function(Optional for HP-BCM200A)

Technological parameters:
Display step: 2ml
Specific gravity: 1.05g/ml
Filling speed: 0.5～3 ml/sec
Accuracy: ±2% in static,±5% in agitating motion
Agitation: 14°±2°,33±2 times/min
Tubing applicable: PVC tubing with φ3-6（mm）,thickness not more than 0.5mm
Alarm: both in light indicator and sound
Electric power: 220VAC±10%,50HZ,40W
Ambient condition:+5℃～+40℃,<80% RH
Clamp: available for HP-BCM100

Note:One year quality guarantee and 24 hours phone service for all the products supplied
