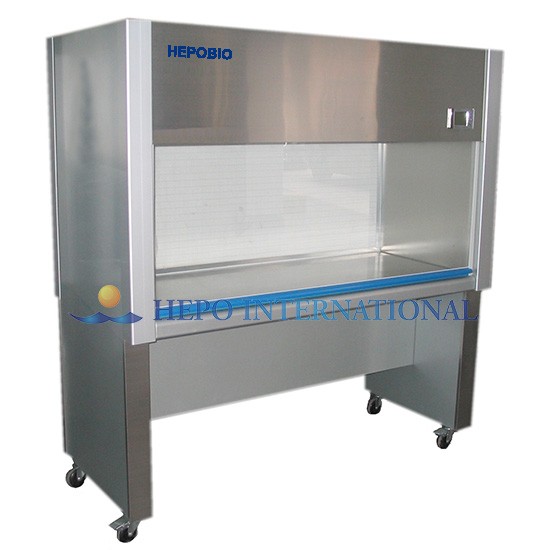

HP-LFC series Vertical Laminar Air Flow cabinet is the new unidirectional air flow clean bench which is designed and produced with international advanced technology, adopting fan system with air volume adjustable and matched with movable door free to locate.The contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.
Main Features
1. Equipped with spring up/down movable door in the front and back of work bench, flexible and convenient to locate, air insulation design to avoid cross pollution inside and outside
2. Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.
3. Operate with LED panel.
4,The front head and operation area are 304 Stainless Steel.The Two sides and the bottom are quality color steel.
5,Options:Electric Remote.
Main Models with parameters
Model | HP-LFC900V | HP-LFC1300V |
Cleaning level | Grade 100(209E U.S. Federal) | |
Filter | Pre-filter and HEPA Filter | |
Several colonies | ≤0.5per utensil.hour(90mmutensil) | |
The average wind speed | 0.25~0.45m/s(Speed two-speed) | |
Noise | ≤62dB | |
Power | AC, single 220 V/50Hz | |
Illumination | ≥300LX | |
Half ventilation peak value | ≤ 3um(XYZ direction) | |
Max. power consumption | 300W | 800W |
Weight | 87Kg | 130Kg |
Dimension of working area(W1×D1×H1) | 700×500×520mm | 1150*490*520 |
Overall dimension W*D*H | 860×560×1600mm | 1300*560*1600 |
Fluorescent lamp | 8w× 1 | 8w× 2 |
UV lamp of ultraviolet lights | 10w ×1 | 10w ×2 |
Suited Operator | Single Person | Double or Triple Persons |
Note:HEPO supply one year quality guarantee and 24 hours phone service for all the products supplied.
