SKU: HP-HFX500P

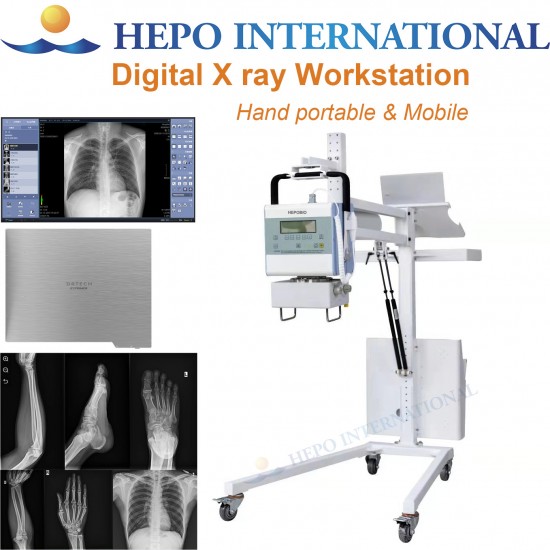

Medical Portable High Frequency X Ray Machine for Human Usage
Description
HP series portable High Frequency X ray system mainly applicable for the lumbar spine,chest,limbs,hand,foot,mouth and other parts x-ray radiography diagnosis by Doctor.It is Including image collection,image acquisition,image transmission and professi
χ
This item has added to inquiry basket

Please check your inquiry basket.

χ
This item was already in your inquiry basket

Please check your inquiry basket.

  • Product Detail
  • Send Inquiry

HP series portable High Frequency X ray system mainly applicable for the lumbar spine,chest,limbs,hand,foot,mouth and other parts x-ray radiography diagnosis by Doctor.It is Including image collection,image acquisition,image transmission and professional image processing software.


Application:It can be widely used in bedside of hospital,vehicle ambulance,disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.


Main Specifications

Model

HP-HFX800P

HP-HFX500P

HP-HFX350P

Max Output Power

8.0kW

5.0kW

3.5kW

Power Capacity

100kV@80mA

100kV @ 50mA

100kV@35mA

KV Radiographic

40-120kV

40-110kV

40-100kV

mA Range

100 mA, 80 mA, 63mA,
     50mA, 40mA, 32mA

100mA, 80mA, 63mA,
     50mA, 40mA, 32mA

50mA,40mA, 32mA

mAs Range

0.32-315mAs

0.32-315mAs

0.32-200mAs

Exposure Time Range

0.01-10s

0.01-6.3s

0.01-4s

Display Panel

Digital display with push-button operation(10.4inch touch screen or 13inch touch screen is optional).

Operating Frequency

500kHz (Frequency Conversion PFM)

Input Power Type

220V +/-10%, 50Hz/60Hz;110V is optional

Dimension

297mm × 239mm × 230mm

Weight

23 KG

Inverter Method

PWM(pulse width modulation)

Standard Accessories:
 1,Portable X Ray Machine
2,Foldable stand support (Support Portable X Ray machine 600mm to 2100mm).

Optional to update DR workstation with software.

Optional Accessories:Auto Film Washing Processing Machine,Chest-radiography stand,Chest-radiography bed,Lead radiation protective clothing,gloves,eye Goggles,radiography meter,suitcase with wheels,etc.


Note:1,HEPO supply one year quality guarantee and 24 hours phone service for all the products supplied.2,Installation and training service can be supplied accordingly
